Features:

*L21-30 Input & Looped Output

*LED Indicator Lights Over Each Phase When Voltage Is Present

*Front Courtesy Outlet:

  -Includes USB A & C Charge Ports

  -2 AC Outlets

  -Dedicated 15 Amp Pop Breaker

*3 – 20amp Hydraulic Breakers

*2 Powercon Outlets Per Phase (6 Total)

*Black Anodized Aluminum Construction

*2U Height, 6” Deep

Description:

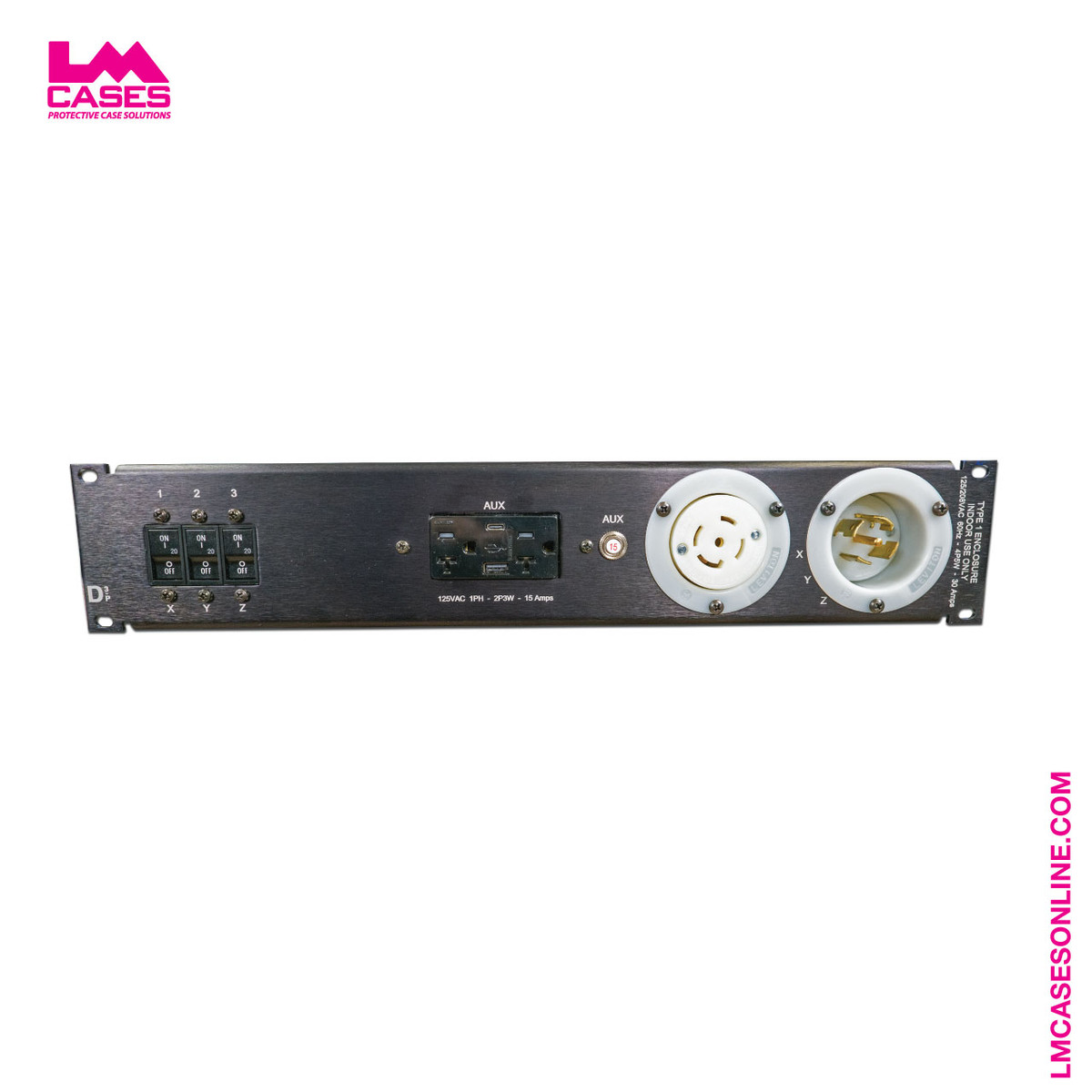

The LM Tour Systems D 3/P power distribution is designed to break out 3 phase power into locking Powercon connections. The distro features a L21-30 inlet and looped outlet allowing multiple units to be daisy chained together. The looped output is wired pre-breaker. The flanged inlet has 3 LED lights that illuminate when voltage is present. The font of the unit features a courtesy duplex outlet featuring a USB A and USB C charge port. 3 – 20 amp hydraulic breakers are provided over each phase. The back of the unit features 2 Powercon outlets per phase (6 total). The rugged chassis is 2U tall and is built from black anodized brushed aluminum. The front panel is built from .125” thick aluminum and the top, bottom and back box are built from .063” aluminum.

Don’t forget to add an LM Tour Systems L21-30 power cable or a variety of Powercon cables to your distro!
