Features:

*Hubbell 5278 15-Amp Recessed Inlet w/LED Power Indicator Light

*Hubbell 5279 15-Amp Recessed Outlet (Pre-Breaker)

*Leviton T5633-E Courtesy Outlet w/USB A & C Charge Ports

*Separate 15amp Breaker For Courtesy Outlet

*6 Rear Mounted Hubbell 5362 Duplex Outlets

*1 True1 Outlet

*1 Powercon Outlet

*20 Amp Hydraulic Breaker

*2U Rack Mount Chassis

Description:

The LM Tour Systems D 1/1 15-Amp power distribution unit is designed for applications where an Edison AC power is the desired input connector. The D 1/1 has many of the same features of our larger 2 & 3 phase units in a 15-amp single phase version.

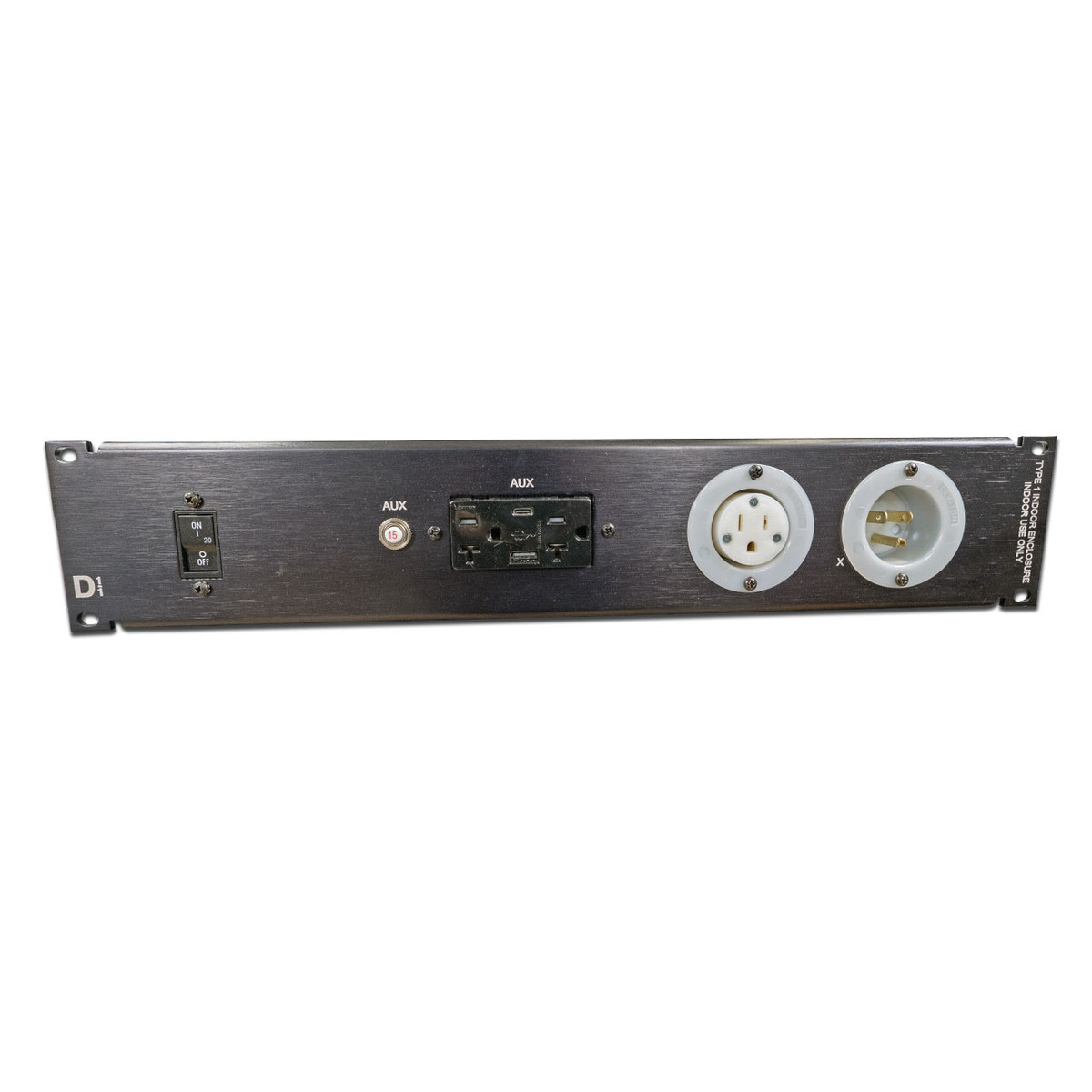

Power is supplied to the unit via a Hubbell 5278 flanged inlet with LED power indicator light. A 5279 flanged outlet is wired pre-breaker for linking multiple units together or for an additional courtesy outlet. The front panel also features a Leviton T5633-E courtesy duplex outlet that features a USB A & C charge port. The courtesy outlet is protected via its own 15-amp pop breaker. The rear panel features 6 Hubbell 5362 duplex outlets, a Neutrik True1 outlet and a Neutrik Powercon outlet. All outlets are protected by a front mounted 20-amp pop breaker.

The front panel is built from .125” brushed aluminum that is black anodized. All labels are laser etched. The rear enclosure is built from mitered .063” brushed aluminum.

Don't forget to add an LM Tour Systems 15-Amp power cable!
