Features:

*.375” Plywood Inner Rack Shell – Black ABS Facing In

*20.5” Max Rack Shell Depth

*Rack Rails Recessed ½” Front & Rear (19.5” Rail – Rail)

*2” Foam Surrounding Rack Shell

*17U Total Rack Height

*HD Drawer:

  -½” Baltic Birch Construction

  -HD Accuride Glides

  -Usable Dims: 19.125” wide x 20” deep x 5.25” tall

*4 Deep Recessed Handles

*4” Colson HD Casters w/Full Sized ¾” Caster Board (2 Casters Are Locking)

*.375” Plywood Construction Laminated w/Your Choice Of ABS Plastic Colors

*Max OD Including Corners & Casters: 23.75” Wide x 30” Deep x 49.875” Tall

Description:

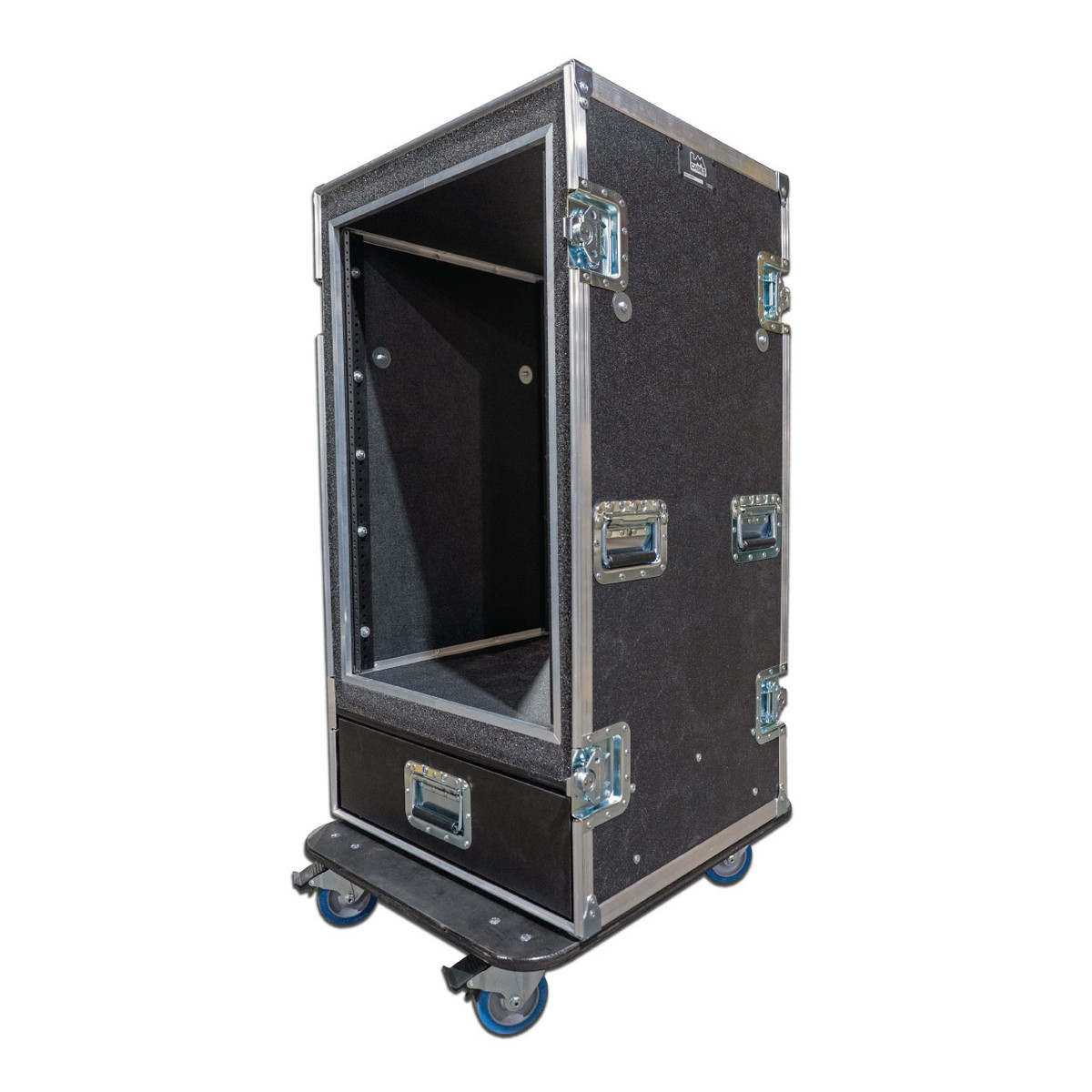

This custom case is intended for processing applications where rack mount equipment and miscellaneous items need to be stored. Though intended for FOH processing equipment, the case can easily be deployed in wireless mic systems, video processing etc..

The case features a shock mounted, 17U rack. The rack shell is 20.5” deep and is built from .375” plywood with black ABS laminate facing inward. The rack features front and rear, pre-tapped 10/32” rack rail with 19.5” between the rails. The rack is surrounded by 2” foam, isolating it from the exterior case.

A HD drawer is provided for misc storage. The drawer is built from ½” Baltic Birch plywood and mounted on HD Accuride glides. The drawer features interior dimensions of 19.125” wide x 20” deep x 5.25” tall.

The case exterior is built from .375” plywood laminated with your choice of ABS plastic colors. The front & rear lids feature HD steel table legs (not pictured). The lids also feature a slim line recessed handle on each side for easy removal (not pictured). The case rides on 4” Colson casters (2 locking) mounted via a full sized ¾” caster board.
