Features:

*½” Plywood Construction

*Black ABS Laminated Interior

*Max Rail – Rail Depth: 22”

*Front & Rear Pre-Tapped 10/32” Rack Rails

*Mid Dual Flange Box Hole Combo Rail

*4 Deep Recessed Handles

*4” x 2” Colson Casters (2 Locking)

*Recessed PAL Label Dish

*Your Choice OF ABS Plastic Colors

*Max OD Including Corners & Casters (24” Wide x 30” Deep x 42.325” Tall)

Description:

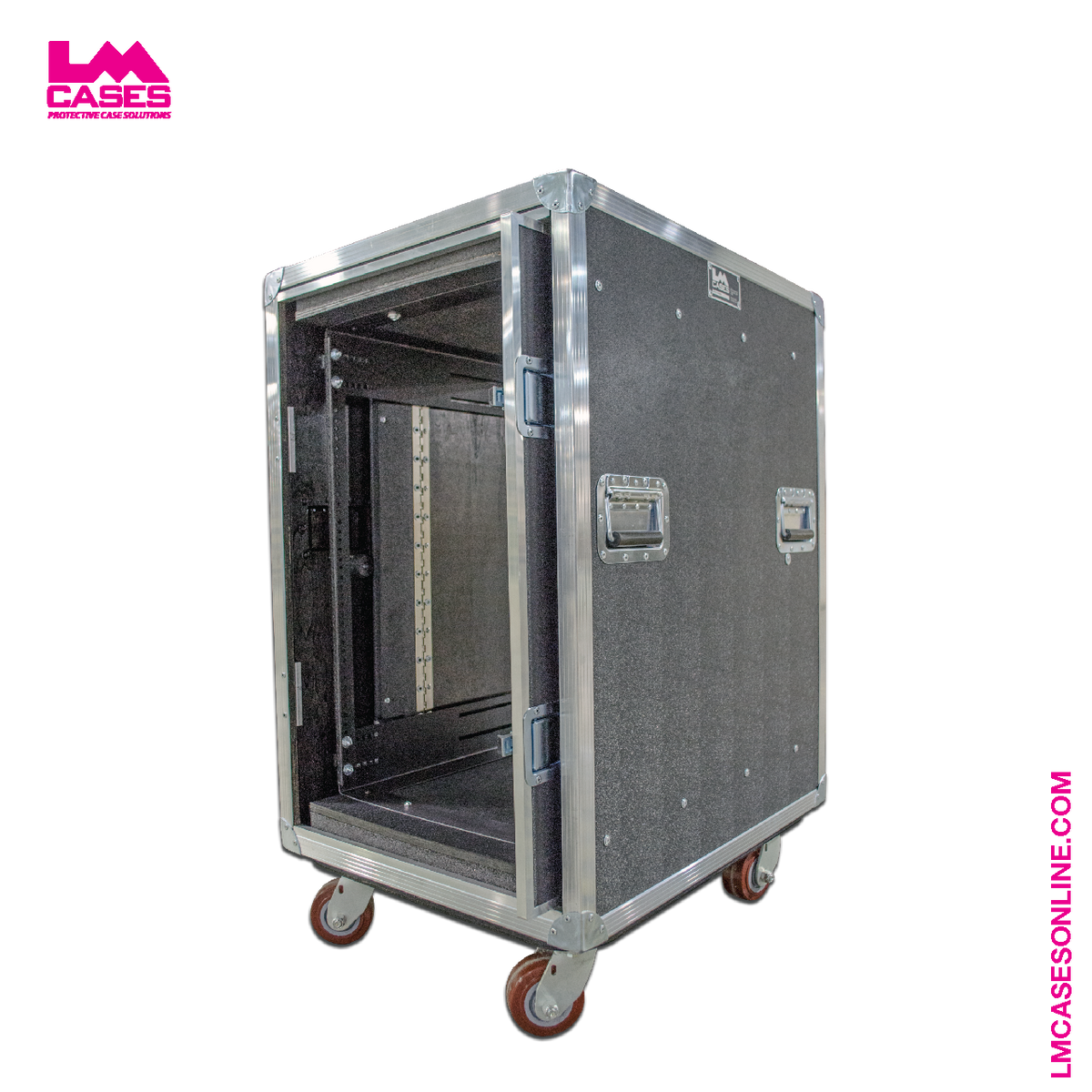

The LM Cases pocket door rack series are designed with touring applications in mind. Each rack in the series features exterior dimensions of 24” wide x 30” deep for optimal truck packing in both directions.

The case interior is laminated with black ABS plastic. An adjustable rack frame is mounted on ½” ABS laminated plywood boards top and bottom with 2” foam isolating each board from the exterior case shell. The rack frame comes complete with pre-tapped 10/32” rails mounted in the front & rear positions. A set of dual flange combo rails are mounted in the mid rail position allowing amplifiers and drawers to be rear mounted. The combo rails also are designed to work as a cable raceway with the box holes working as securement points for zip ties. All rails are fully adjustable along a 22” plane.

The case exterior is built from ½” plywood laminated with your choice of ABS plastic colors. The hardware set includes 4 deep recessed handles, slam latches on each door, deep recessed caster wells and a recess PAL label dish for dry erase labels. A full sized ¾” caster board is mounted to the case bottom and features 4” x 2” Colson HD casters with the front 2 locking.
